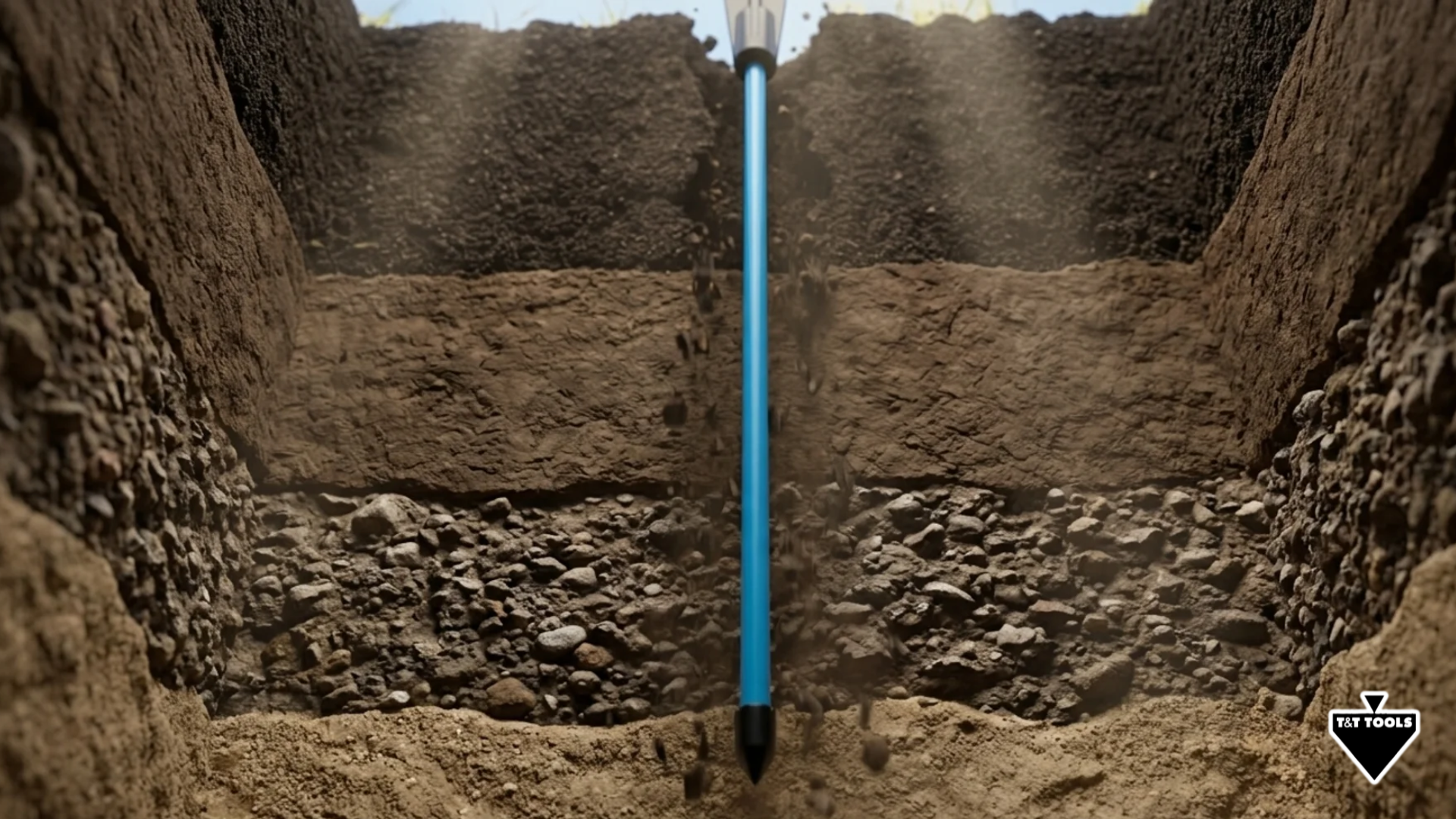

Soil probe going through layers of soil and dirt

June 01, 2026

Heat-Treated Steel vs. Standard Steel: Why Probe Material & Rod Type Matter

Learn why heat-treated steel, rod stiffness, and probe tip design play a critical role in durability, control, accuracy, and long-term field performance.

When it comes to probing tools, performance depends on more than technique alone. Material quality, rod stiffness and tip design all affect how efficiently a probe enters the ground, how much feedback it provides and how long it lasts. Understanding these differences helps professionals choose the right tool for their specific conditions and applications.

Tool Talk: Tool Talk:

Why Probe Material & Rod Type Matter

Resists bending

Improves durability

Handles repeated use

Maintains long-term performance

Field Performance Advantages

Greater accuracy

Less rod flex

Improved reliability

Reduced user fatigue

Alien holding soil probe inspecting the ground

Heat-Treated Steel Makes The Difference

At the core of every professional-grade probe is heat-treated, high-strength alloy steel. This material is engineered to resist bending and wear while maintaining strength through years of use. In compacted clay, rocky ground or frozen soil, stronger materials deliver the consistency and durability professionals depend on every day.

Stronger than standard steel

Resists permanent bending

Improves tool lifespan

Maintains reliable performance

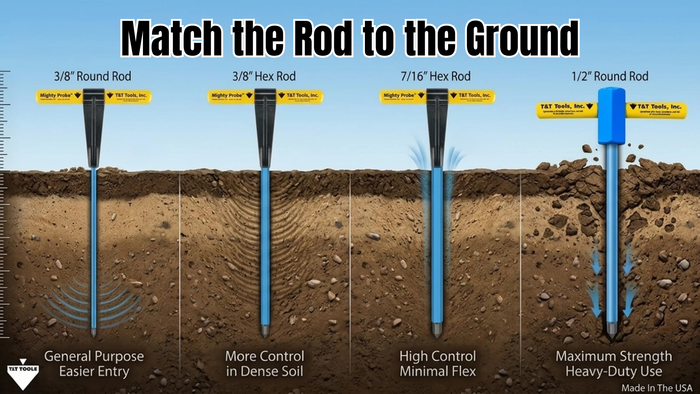

Match The Rod To The Ground

Different soil conditions require different levels of stiffness and control. Choosing the right rod helps balance penetration, flexibility and strength, allowing professionals to work more efficiently in a wide variety of ground conditions.

3/8" Round Rod

General-purpose option with easier penetration and increased flexibility.

3/8" Hex Rod

Approximately 20% stiffer for improved control in denser soils.

7/16" Hex Rod

Provides high control with minimal flex for demanding conditions.

1/2" Round Rod

Maximum strength and rigidity for heavy-duty applications.

VIEW MIGHTY PROBE OPTIONS

Understanding Rod Stiffness Tradeoffs

As rod stiffness increases, so does control and strength. However, stiffer rods generally require more effort to drive into the ground. Choosing the ideal rod depends on soil density, probing depth, and the level of feedback required for the task.

Illustration of different types of soil probs rods with their respective sizes and uses in soil.

Probe Tips: Tip Design Affects Performance

The shape and construction of a probe tip directly influence penetration, feedback and overall field performance. Small design details can make a significant difference in efficiency and accuracy.

Heat-treated alloy steel construction

Tapered edges improve penetration

Larger tip reduces shaft drag

Smoother insertion and removal

Improved underground feedback

Better performance in varying soil conditions

Choosing the right tip design helps improve productivity while providing the confidence professionals need when working around buried infrastructure.

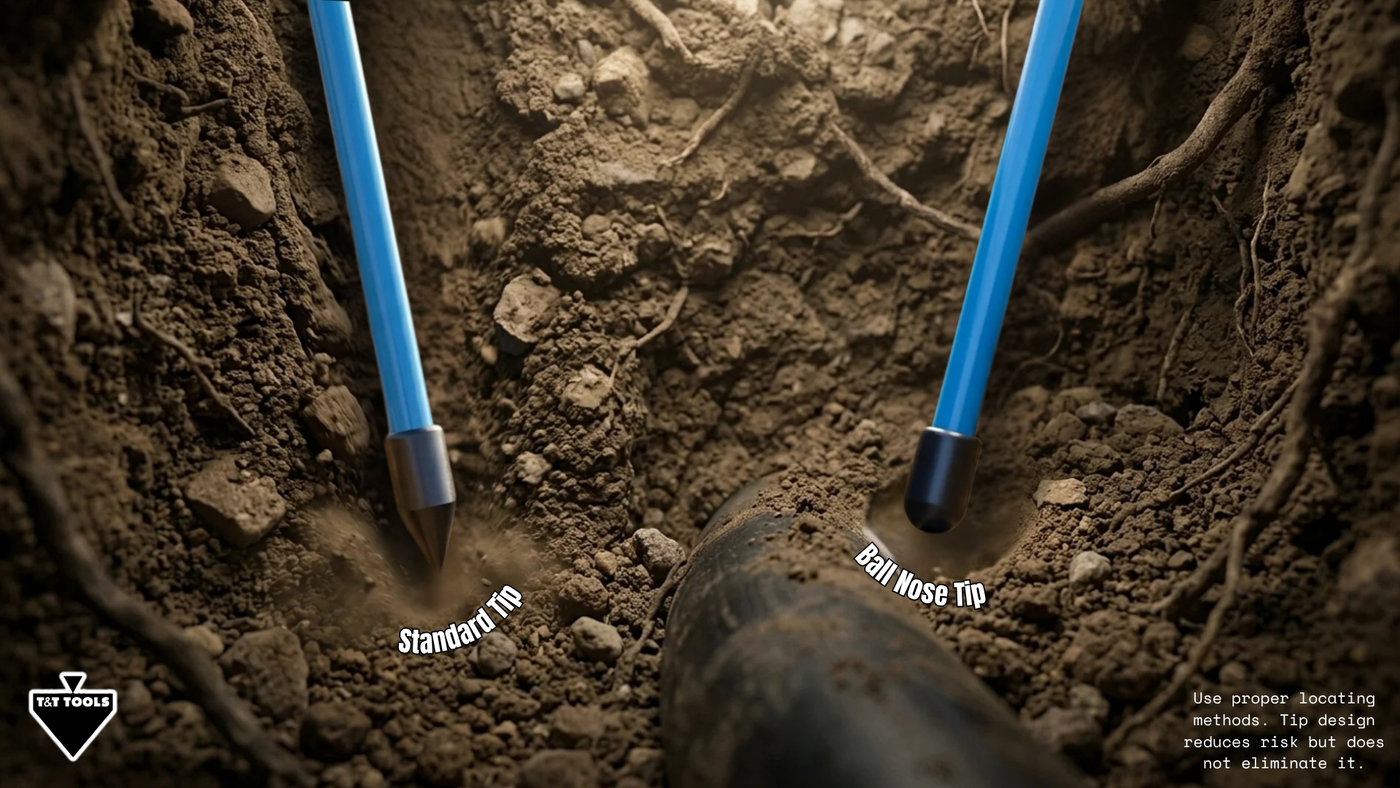

Two blue tools with different tips embedded in soil, labeled 'Standard Tip' and 'Ball Nose Tip'.

Standard Tip vs Ball Nose Tip

Different locating situations call for different tip styles. While standard tips maximize penetration and feedback, ball nose tips provide additional protection when working near sensitive underground utilities.

1

Standard Tip

Provides excellent penetration and strong feedback when probing through compacted or rocky soils.

2

Ball Nose Tip

Features a rounded profile that helps reduce the risk of damaging fiber optic, gas or water lines.

3

Built For Safety

Proper tip selection helps improve safety, accuracy and confidence during underground locating work.

Why Material And Design Matter In The Field

The materials and design behind a probe directly affect how it performs in the field. Heat-treated steel provides durability, rod size determines the balance between flexibility and control, and tip design improves efficiency and accuracy. Together, these features create a tool that performs consistently in demanding conditions while helping professionals work faster and with greater confidence.
